Debugging custom ApiGateway authorizers

November 05, 2023#aws, #serverless, #lambda, #api-gatewaycomments

— Published by Luciano Mammino's profile pictureLuciano Mammino

Last week, while working on a custom REST API Gateway Lambda authorizer, I spent some time trying to debug a mysterious 500 error with a {"message":null} body. In this article, I will share why this was happening and how to debug this kind of error when building custom API Gateway authorizers.

The use case

Before diving into the problem, let me give you a bit of context about the use case I was working on. As I said, I was working on an open-source project implementing a custom authorizer for AWS API Gateway. The project is simply called oidc-authorizer and it’s already available on GitHub and the Serverless Application Repository (SAR). This authorizer is implemented as a Lambda function and it allows you to authenticate requests following to OIDC (OpenID Connect) protocol.

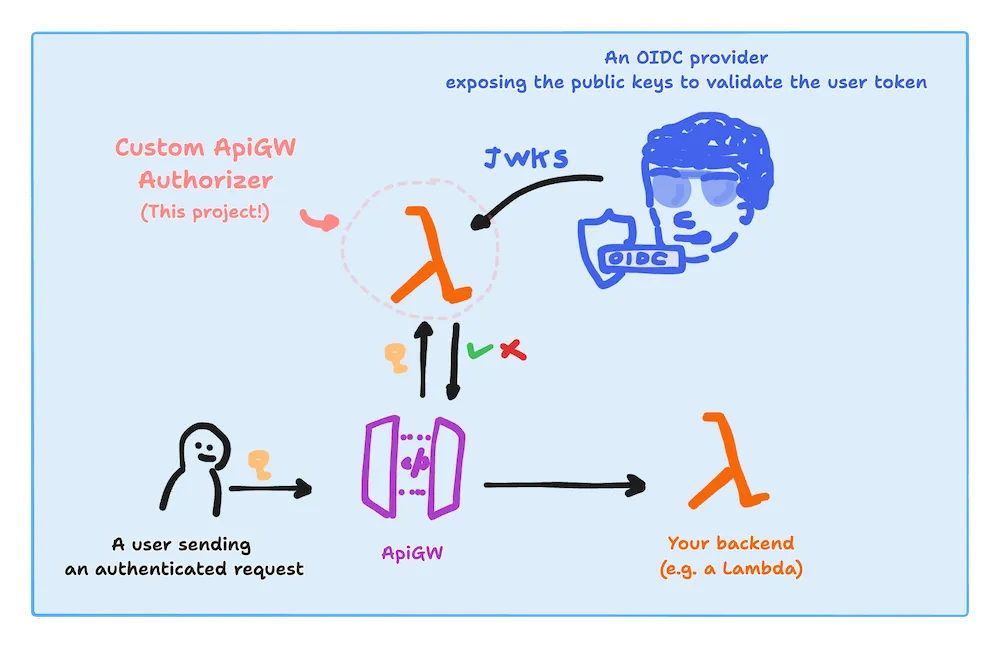

To better understand what that means, let’s have a look at this lovely diagram (that I am proud to have drawn by myself):

A sketchy diagram with a user that sends an authenticated request to API Gateway. API Gateway is configured to use a custom lambda as an authorizer (implemented by the oidc-authorizer project). The lambda talks with your OIDC provider to get the public key to validate the user token and responds to API Gateway to Allow or Deny the request.

In this diagram, we see a user that sends an authenticated request to API Gateway. API Gateway is configured to use a lambda as a custom authorizer. The lambda talks with a given OIDC provider to get the public key to validate the user token and responds to API Gateway to Allow or Deny the request.

This type of authentication is based on the idea that a token (in this case, a JWT) can be trusted only if it’s signed by an authority we trust. That’s why we need to talk with the OIDC provider to get the public key to validate the signature of the token.

I have been speaking and writing at length about JWT before, so I am just going to say that if you want to deep dive into the fascinating topic of OIDC you can check out the official specification of the OIDC standard. If you have the guts to read protocol specifications, it’s a very interesting read, I promise! 😇

The problem

Ok, all pretty cool, but what was the problem?

The problem is that I am a terrible programmer and when I started testing my first version of the authorizer my code was quite buggy and it didn’t work in the way that REST API Gateway Authorizers are supposed to work.

I take responsibility for that, but that’s only part of the problem. The other side of the coin is that AWS wasn’t really giving me a useful error message: the only thing I could see when making a request was a 500 error with a response body containing only the JSON payload {"message":null}.

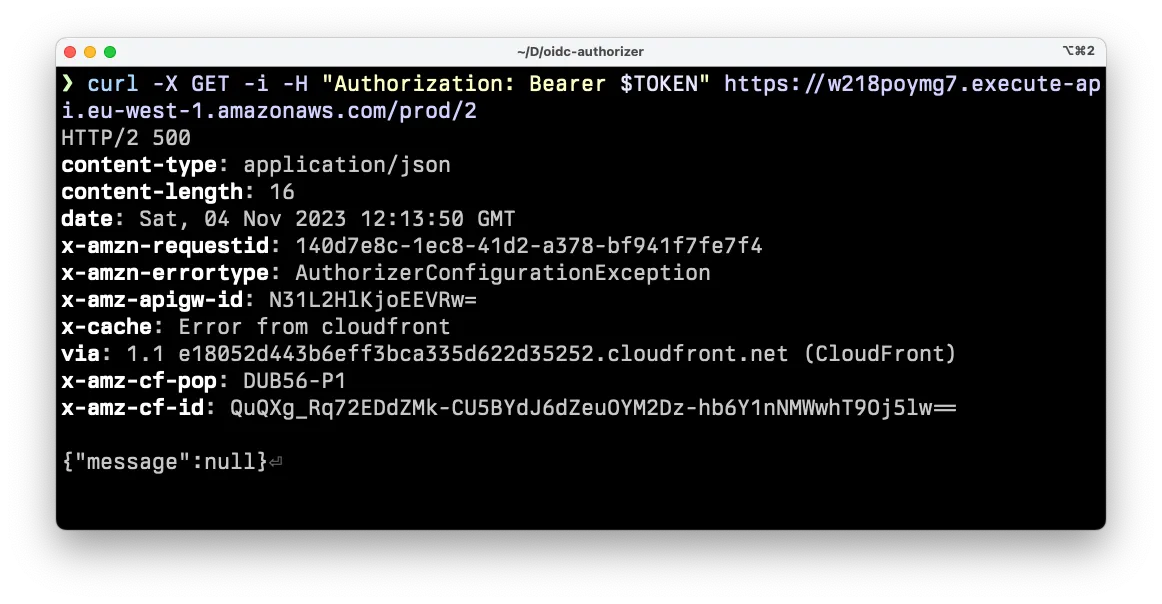

The response that is received by a borked custom REST API Gateway authorizer. You get just a 500 with a message: null payload

The full response:

HTTP/2 500
content-type: application/json
content-length: 16
date: Sat, 04 Nov 2023 12:13:50 GMT
x-amzn-requestid: [...]
x-amzn-errortype: AuthorizerConfigurationException
x-amz-apigw-id: w218poymg7
x-cache: Error from cloudfront
via: 1.1 [...]cloudfront.net (CloudFront)
x-amz-cf-pop: [...]
x-amz-cf-id: [...]


Shrugh… What do you do in these cases? 🤷

You try to look for some logs in CloudWatch, right? Well, I did that and I found nothing. API Gateway doesn’t have a log group by default and I was expecting to see some logs from my Lambda function, but there was nothing useful there!

The solution

The solution is to enable extensive logging for API Gateway.

So, how do we do that?

We can do that using Infrastructure as code using CloudFormation or SAM.

These are the logical steps we need to follow:

  1. Create a Role that allows API Gateway (at the service level) to write logs to CloudWatch
  2. Use the AWS::ApiGateway::Account resource to assign the role we just created to API Gateway.
  3. Updated the specific instance of a REST API Gateway stage to enable logging and tracing on it.

Enabling API Gateway logging to CloudWatch with CloudFormation

OK, let’s start with the code for the first 2 steps using the following CloudFormation template:

# apigw-logging.yaml

AWSTemplateFormatVersion: "2010-09-09"
Description: Allow API Gateway to write logs to CloudWatch

    Type: AWS::ApiGateway::Account
      CloudWatchRoleArn: !GetAtt CloudWatchRole.Arn

    Type: AWS::IAM::Role
        Version: "2012-10-17"
          Action: "sts:AssumeRole"
          Effect: Allow
            Service: apigateway.amazonaws.com
      Path: /
        - "arn:aws:iam::aws:policy/service-role/AmazonAPIGatewayPushToCloudWatchLogs"

To avoid overwriting other roles, we should only have one AWS::ApiGateway::Account resource per region per account, so we are creating a generic stack only to allow API Gateway to send logs to CloudWatch. We will be defining our APIs in other stacks.

Let’s say we call this file apigw-logging.yaml. We can now deploy it with the following command:

aws cloudformation deploy \
  --template-file apigw-logging.yaml \
  --stack-name apigw-logging \
  --capabilities CAPABILITY_IAM

Make sure to specify a region either with the --region flag or by setting the AWS_DEFAULT_REGION environment variable.

If all goes well, you should see an output like this:

Waiting for changeset to be created..
Waiting for stack create/update to complete
Successfully created/updated stack - apigw-logging

Note: if you prefer to use SAM (which we will use later), you can use it to deploy the template above with the following command: sam deploy --guided --template apigw-logging.yaml.

Enable logging and tracing for a specific API Gateway stage using SAM

Now that we have a role that allows API Gateway to write logs to CloudWatch, we can enable logging and tracing for a specific API Gateway stage.

This time, to make our life a bit easier, we prefer to use SAM (rather than CloudFormation) to define our API Gateway. SAM is a superset of CloudFormation that allows us to define serverless applications more concisely.

So, let’s say we have another SAM template that defines an API Gateway and the stage we want to enable logging. The template could look like this:

# api.yaml

AWSTemplateFormatVersion: "2010-09-09"
Transform: AWS::Serverless-2016-10-31
Description: AWS SAM template with a simple API definition

    Type: AWS::Serverless::Api
      StageName: prod
      Description: Our production API
      # Enable traces and logs for the API Gateway stage
      TracingEnabled: true
        - HttpMethod: "*"
          LoggingLevel: INFO
          ResourcePath: "/*"
          MetricsEnabled: true
          DataTraceEnabled: true

  # A sample API endpoint backed by a Lambda function
    Type: AWS::Serverless::Function
          Type: Api
            Path: /hello
            Method: get
              Ref: ApiGatewayApi
      Runtime: python3.9
      Handler: index.handler
      InlineCode: |
        def handler(event, context):
            return {'body': 'Hello, my friend!', 'statusCode': 200}

# Prints the full URL of our test endpoint
    Description: "API Gateway endpoint"
    Value: !Sub "https://${ApiGatewayApi}.execute-api.${AWS::Region}.amazonaws.com/prod/hello"

Let’s deploy this stack with:

sam deploy --guided --template api.yaml

Note that SAM will warn us that we haven’t set any authorization for our API Gateway. That’s fine for now, we will add it later. But you need to make sure you reply Y to the following question:

SampleApiFunction1 has no authentication. Is this okay?

If all goes well, you should see an output containing the URL of our endpoint. If you call it you should see the message: “Hello, my friend!”.

Adding a custom authorizer to our API Gateway

Now that we have an API Gateway with a stage that has logging and tracing enabled, we can add a custom authorizer to it.

The goal of this article is not to deep dive into how to write a custom API Gateway authorizer. If you want a deep dive into that, I warmly recommend this fantastic article by Alex DeBrie: “The Complete Guide to Custom Authorizers with AWS Lambda and API Gateway”.

Just to have a simple example to work with, let’s say that we want to authorise all requests that provide an Authorization header that contains an odd number.

So the following headers will be authorized: ✅

Authorization: 1
Authorization: 3
Authorization: 5

While, the following headers will be denied: ❌

Authorization: 2
Authorization: 4
Authorization: something else

Even failing to pass the Authorization header will result in a denial.

The code for our custom Authorizer could look like this (don’t judge my terrible Python skillz, pleaze 😅):

# handler.py

def handler(event, context):
  authorization_token = event['authorizationToken']
  endpoint = event['methodArn']
    if int(authorization_token) % 2 == 1:
      # valid authorization response
      return {
        "principalId": "authenticatedUser",
        "policyDocument": {
          "Version": "2012-10-17",
          "Statement": [
              "Action": "execute-api:Invoke",
              "Effect": "Allow",
              "Resource": "*"
  # deny response
  return {
    "policyDocument": {
      "Version": "2012-10-17",
      "Statement": [
          "Action": "execute-api:Invoke",
          "Effect": "Deny",
          "Resource": str(endpoint)

If you save this Python code in a file called handler.py in the same folder where we have our api.yaml template, then we can add the authorizer to the template like this:

# api.yaml

  # [...]

    # Authorizer Lambda
      Type: AWS::Serverless::Function
        Runtime: python3.9
        Handler: handler.handler
        CodeUri: .

This only creates the Lambda resource, but to configure it as an authorizer, we need to add the following section to the ApiGatewayApi resource:

# api.yaml

  # [...]

    Type: AWS::Serverless::Api
      # [...]
        DefaultAuthorizer: SimpleApiAuthorizer
            FunctionPayloadType: REQUEST
            FunctionArn: !GetAtt SimpleApiAuthorizerLambda.Arn

Ok, we are finally ready to deploy our updates to the api.yaml template with:

sam deploy --guided --template api.yaml

If all went well, we should now be ready to send requests to our API Gateway and see the authorizer in action.

Let’s try to send a request with a valid authorization header:

curl -i -X GET -H 'Authorization: 17' <your-api-url>/hello

You should see a response like this:

HTTP/2 200
content-type: application/json
content-length: 21
date: Sun, 05 Nov 2023 13:24:15 GMT
x-amzn-requestid: 7a8c5040-e76b-400f-8407-0c6ed9b72e46
x-amz-apigw-id: N7Sb5GwpDoEEf9A=
x-amzn-trace-id: Root=1-6547977f-2ec69acd4fd64cb0285e36d7
x-cache: Miss from cloudfront
via: 1.1 33388636a7cb2afa812b276d900f88d4.cloudfront.net (CloudFront)
x-amz-cf-pop: DUB56-P1
x-amz-cf-id: DOa6otRm_gZyYG0rn-FM-vC1HhjzuhJIAzfms02bbny_0DpmKMTc3w==

Hello, my friend!

If instead we send a request without an Authorization header we should see something like:

HTTP/2 401
content-type: application/json
content-length: 26
date: Sun, 05 Nov 2023 13:25:29 GMT
x-amzn-requestid: e9ab5f97-9a5a-4f34-94d7-87df74a235de
x-amzn-errortype: UnauthorizedException
x-amz-apigw-id: N7SnfFYZjoEEolg=
x-amzn-trace-id: Root=1-654797c9-3cd1a8f5095fef3e3297ac26
x-cache: Error from cloudfront
via: 1.1 93951ac7649a5f7c158d327385b2aeb8.cloudfront.net (CloudFront)
x-amz-cf-pop: DUB56-P1
x-amz-cf-id: PuyPcm7sY13bfhigJXgNGTgYkT5CjinaK_uD6bl0jDNdGn_U0_pmHw==


Finally, if we send an invalid value for the Authorization header (e.g. not a number or an even number) we should see something like this:

HTTP/2 403
content-type: application/json
content-length: 82
date: Sun, 05 Nov 2023 13:26:18 GMT
x-amzn-requestid: 49a6b913-a965-4f66-a9e1-7b4ccf3b96cc
x-amzn-errortype: AccessDeniedException
x-amz-apigw-id: N7SvJHWQDoEEXeA=
x-amzn-trace-id: Root=1-654797fa-6ae95da234f15ba6587fb36d
x-cache: Error from cloudfront
via: 1.1 4b0861a8035fd11b1a90183c566020e2.cloudfront.net (CloudFront)
x-amz-cf-pop: DUB56-P1
x-amz-cf-id: gA-hS_7NeRjCtmKPc2P76uGyxaDNmWpE8iUZQMsxMHBoWm2W4uTPqw==

{"Message":"User is not authorized to access this resource with an explicit deny"}

Note how there’s a difference in the error response between not sending an Authorization header and sending an invalid one. In the first case, we get a 401 with a {"message":"Unauthorized"} body, while in the second case, we get a 403 with a {"Message":"User is not authorized to access this resource with an explicit deny"} body.

In the first case, API Gateway is automatically handling the response for us and our custom authorizer lambda is not even invoked. In the second case, the authorizer is invoked and it returns a Deny response, which produces a 403 error and that specific error message.

Looking at the API Gateway logs

Ok, I have been kind enough to give you a working authorizer, so we didn’t really have to debug much… but we should still have a look at the API Gateway logs to see what they look like and why they could be really useful in case something went wrong and we needed to troubleshoot.

To look at the logs, we need to go to the CloudWatch console. From there, we need to select the Logs section and then the Log groups section. We should see a list of log groups and we should be able to find the one for our API Gateway. It should be called something like API-Gateway-Execution-Logs_<your-api-id>/prod.

Example of API Gateway logs

As you can see, in these logs you can see quite a bit of detail about all the steps that API Gateway is performing before and after invoking our custom authorizer. This is really useful to understand what’s going on and where the problem could be.


And this brings us to the end of this article!

I hope you enjoyed it and that you learned something new.

If you have any questions or feedback, please let me know in the comments below or on X, formerly Twitter.
